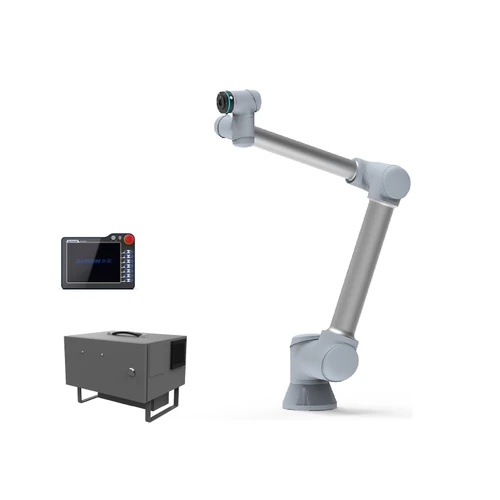

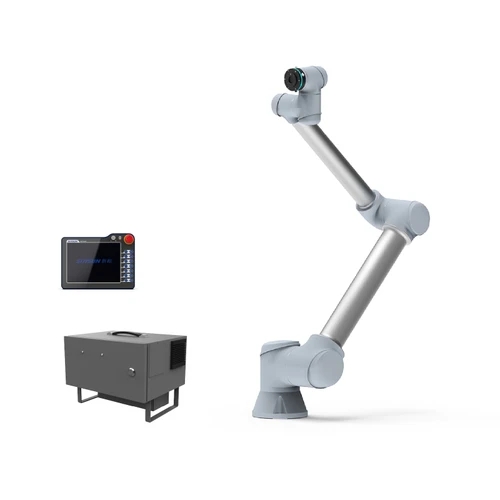

Max Payload 25kg | Reach 1800mm
In assembly scenarios characterized by the presence of heavy module installations and site environments unsuitable for extensive modifications, the GCR25 demonstrates exceptional performance due to its impressive 25kg payload capacity. This enables the robot to effortlessly execute the assigned tasks with precision and efficiency.
| Max Payload | 25kg |
| Max TCP Speed | 2.5m/s |
| Max Straight-line speed | 1.5m/s |
| Reach | 1800mm |
| Repeatability | ± 0.05mm |
| IP class | IP54/IP65 |
| Communication | Tcp/Ip、Modbus/Tcp、Profinet、Ethernet/Ip |
| Degree of Freedom | 6 | |
| Joint | Joint | Max Speed |
| J6 | ±360° | 225°/s |
| J5 | ±360° | 225°/s |
| J4 | ±360° | 225°/s |
| J3 | ±360° | 150°/s |
| J2 | ±360° | 100°/s |
| J1 | ±360° | 120°/s |
| Tool Interface | GB/T 14468.1-50-4-M6(eqv ISO 9409-1) | |
| End Joint I/O | 2 Dig I/O,24V,0.6A | |
| Power Supply | 220-240VAC 47-63Hz10A/100-200VAC 47-63Hz 16A | |
| Power Consumption | Typical Power Consumption 600W | |
| Installation | Land type | |
| Ambient Temperature Range | -10°C-50°C | |
| Storage Temperature Range | -40°C-55°C | |
| Robot Dimensions | 2300x440x252mm | |
| Robot Package Size | 1295x540x515mm | |
| Net/Gross Weight | 61.6kg/70kg | |
