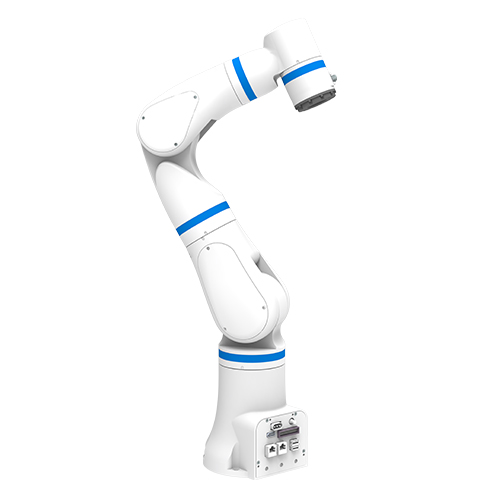

The BR-R63 bionic 6-axis arm delivers integrated control and lightweight intelligence, empowering applications across electronics manufacturing, 3C assembly, precision inspection, and scientific research. It breaks performance constraints typical of lightweight robotic arms, with multi-degree-of-freedom joints and high-speed responsiveness enabling dynamic operations and precise posture maintenance. With extensive interfaces and multi-platform development support, it rapidly integrates into diverse commercial production lines and research systems, ensuring seamless transition from solution design to practical implementation.
Working radius of robotic arm
Body weight
Single-arm rated load capacity
End-of-arm repeatability
| Name | Parameter |
| Robotic arm degree of freedom | 6 |
| Robotic arm working radius | 640Mm |
| Body weight | 8.5Kg |
| Single arm rated load capacity | 3Kg |
| End repeat positioning accuracy | ≤ ± 0.05mm |
| joint range of motion | J1 ± 170 ° |
| J2 -100 °~ + 100 ° | |
| J3 -70 °~ + 160 ° | |
| J4 ± 170 ° | |
| J5 ± 90 ° | |
| J6 ± 180 ° | |
| Maximum joint speed | J1-J3 180 °/s, J4-J6 225 °/s |
| Joint torque sensor | Yes. |
| brake | J1-J3 with brake |
| terminal interface | DC24V power supply (1A), RS485, etherCAT, Dl/DO 2 channels |
| Base interface | USB * 2, IO * 8, network port * 2, HDMI * 1, WIFI, 4G |
| Power supply | DC48V ± 10% |
| peak power | 400W |
| Peak current | 8A |
| Input power | 100-240VAC 47-63Hz 10A |
| IP rating | IP54 |
| working environment | 0~ 45 ℃ humidity: ≤ 85% RH |
| Storage environment | -30~ 55 ℃ Humidity: ≤ 85% RH |
| noise | ≤ 70dB |
| secondary development | ROS2, ROS, python, C++ |
