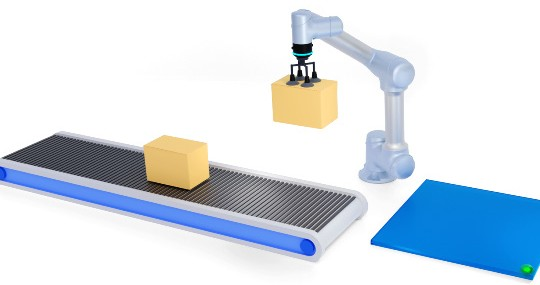

Palletising process package solutions

Solution

The GCR25-1800 Collaborative Robot further exploits the advantageous features of collaborative robots in terms of performance. On the basis of controlling its own weight at 61kg, it achieves 25kg load capacity, 1800 mm long working radius and ±0.05 mm repetitive positioning accuracy. It meets the urgent needs of collaborative applications in basic industrial scenarios such as large-load handling, packaging and palletising. At the same time, the maximum speed of the end of the end reaches 2.5m/s, the end user's production beat is increased by 20% compared with the past, which comprehensively improves the user's production efficiency. In addition to the lack of production flexibility, traditional industrial robots are also difficult to deploy. A large part of the advantage of collaborative robots lies in their ease of deployment, and the GCR25-1800 collaborative robot lives up to this expectation by being extremely flexible and easy to deploy.

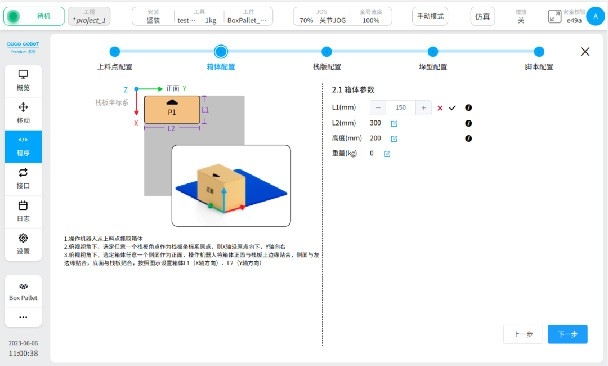

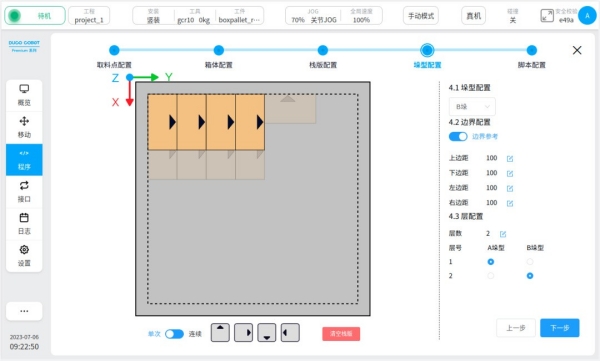

The new DUCOCORE operating system, configured with the BoxPallet palletising package for palletising scenarios, enables a fixed process configuration of the palletising procedure, simple parameter selection and filling in, setup of designated points, and rapid deployment; it reduces the difficulty of configuring the robot's procedure in the traditional way, and reduces the professional skills required of the user, and at the same time improves the rate of the procedure configuration, which solves the problem of the user. The problem of rapid line cutting for small batch and multi-species flexible production is solved.line cutting for small batch and multi-species flexible production is solved. In order to improve the efficiency of users and avoid configuration errors that may lead to the failure of palletising work, the robot path accessibility check function is added to the configuration process.

In order to improve the efficiency of users and avoid configuration errors that may lead to the failure of palletising work, the robot path accessibility check function is added to the configuration process.

Benefits

Based on the excellent performance of GCR25-1800, the palletising scenario can be applied to most of the national standard, European standard and American standard pallets, and the maximum pallet size can be up to 1200mm x 1100mm. according to the actual use of the user's calculations, the first time deployment only takes about 1 hour, and the configuration of the carton/pallet/pallet type only takes 10 minutes, and on average, it can achieve 8 pieces/min, and its return on investment cycle is less than 6 months.
